Meshcrete is an authorised representative and supplier of AFS Rediwall, a PVC permanent formwork system for concrete walls. This innovative system features Snap-In™ panels, creating a versatile and efficient permanent concrete formwork suitable for a wide range of applications.
AFS Rediwall is designed with prefabricated panels and interconnecting components that snap or slide into place, providing a durable, low-maintenance load-bearing reinforced concrete solution. It significantly reduces installation times compared to traditional masonry and blockwork methods. Available in six profile widths, this system is adaptable for almost any internal or external walling, columns, or pit/tank applications. Meshcrete supplies all necessary accessories, including joiners, tracks, fiber strips, and other components required for the project.
| Width | 110mm | 156mm | 200mm | 256mm | 275mm | 300mm |
|---|---|---|---|---|---|---|
| Wall Thickness | Concrete 0.105m3/m2 | Concrete 0.150m3/m2 | Concrete 0.194m3/m2 | Concrete 0.250m3/m2 | Concrete 0.269m3/m2 | Concrete 0.294m3/m2 |
| Accoustic Rating | Rw 50 Rw + Ctr 45 |
Rw 45 Rw + Ctr 50 |
Rw 58 Rw + Ctr 53 |
Rw 60 Rw + Ctr 55 |
Rw 61 Rw + Ctr>56 |
Rw 61 Rw + Ctr>56 |
| Fire Resistance FRL | Upto 90/90/90 (Load bearing) ~ 120/120 (Non load bearing) | 240/240/240 | 240/240/240 | 240/240/240 | 240/240/240 | 240/240/240 |
| Panel Type | Speedy Snap in Panels | Speedy Snap in Panels | Speedy Snap in Panels | Slide-In Panels | Slide-In Panels | Slide-In Panels |
Description
Quality Assurance
AFS Rediwall is CodeMark Certified and compliant with the National Construction Code (NCC). It meets all relevant requirements for structural, load-bearing reinforced concrete walls as per the AS3600-2018 Concrete Structures Code. The system achieves a fire rating of up to FRL 240/240/240 and is GECA authenticated for Best Practice PVC. Additionally, it is a signatory to the Vinyl Council of Australia’s PVC Stewardship Program, ensuring high standards of environmental performance.
Applications

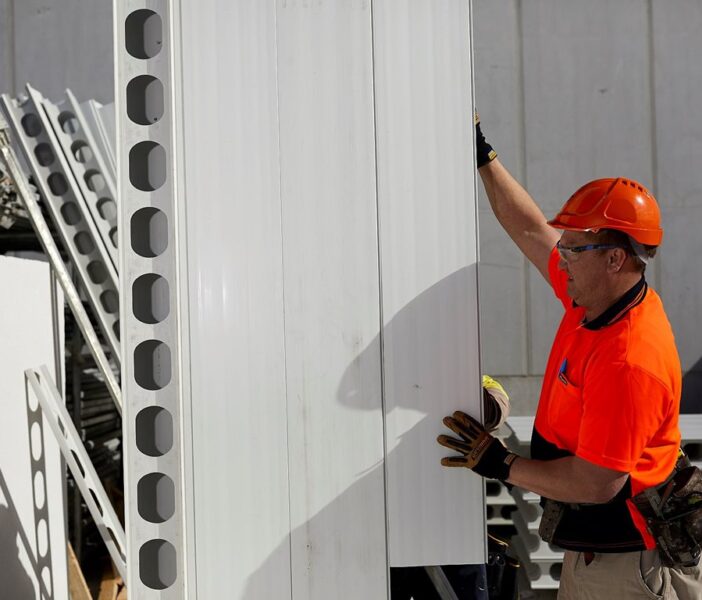

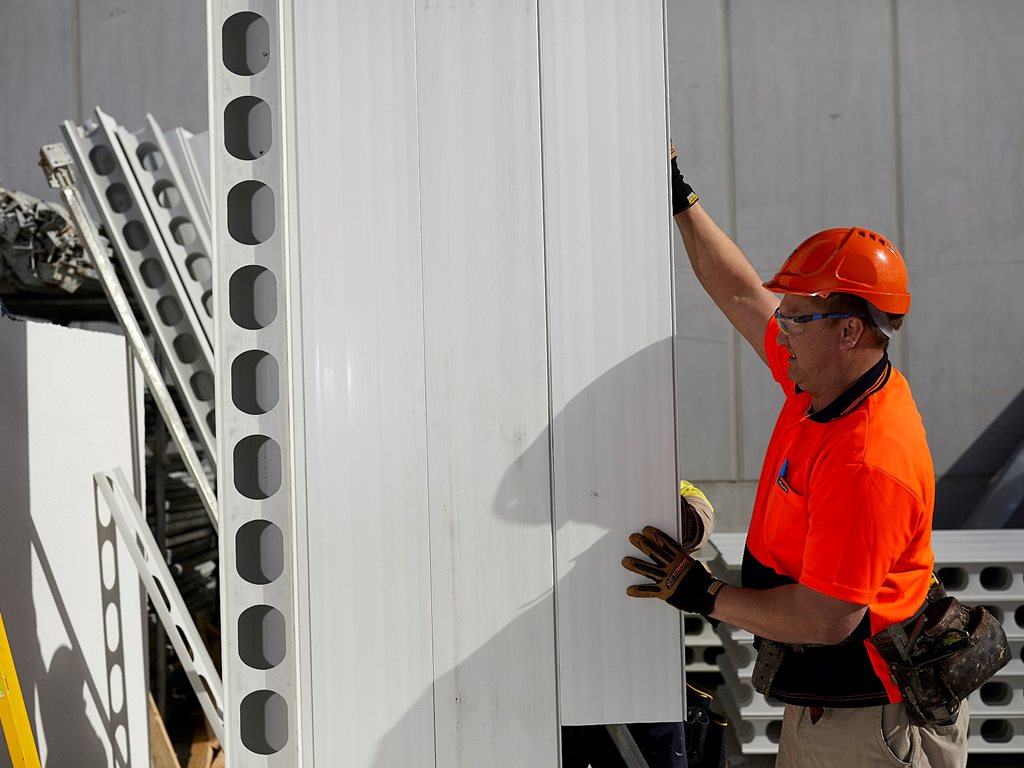

AFS Rediwall is ideal for a variety of below and above-ground wall applications, offering reliability and versatility for multi-level structures. It is proven effective for use in both simple and complex reinforcement scenarios, making it suitable for a range of projects including internal and external walls, columns, and pits/tanks. The lightweight panels snap or slide into place easily, facilitating a quick and efficient installation process without the need for cranes or specialty equipment.
Innovative Solutions
Meshcrete offers customisable AFS Rediwall solutions with rapid delivery options. Stock orders can be delivered within 2 business days and cut-to-length orders are delivered within 6 business days. The system’s design ensures a consistently even, water-resistant, and durable surface with a superior semi-gloss finish, reducing maintenance requirements.
