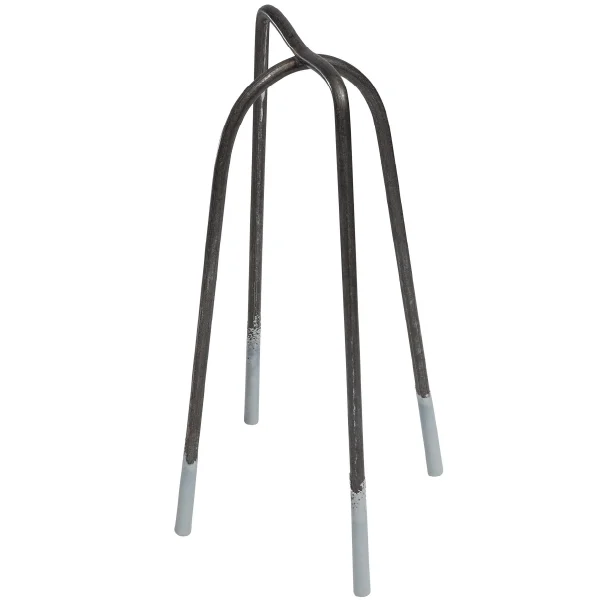

Meshcrete supplies metal bar chairs designed to set reinforcing mesh and bars in the correct positions, thereby preventing exposure to corrosion and other environmental elements. The steel legs of these chairs are covered in a plastic film for added protection, ensuring durability and long-lasting performance.
Metal bar chairs are available in a complete range of sizes, from 20mm to 400mm, to accommodate various construction needs. They are supplied in bags of 25, 50, or 100, ensuring an adequate quantity for any project. Meshcrete also stocks and supplies metal chair bases, providing a comprehensive solution for all reinforcement positioning requirements.
| Reference | Height (mm) | No. Per Bag |
|---|---|---|
| PTBC020 | 20 | 100 |
| PTBC025 | 25 | 100 |
| PTBC030 | 30 | 100 |
| PTBC040 | 40 | 100 |
| PTBC050 | 50 | 100 |
| PTBC065 | 65 | 100 |
| PTBC075 | 75 | 100 |
| PTBC085 | 85 | 100 |
| PTBC090 | 90 | 100 |
| PTBC100 | 100 | 100 |
| PTBC110 | 110 | 50 |
| PTBC120 | 120 | 50 |
| PTBC130 | 130 | 50 |
| PTBC140 | 140 | 50 |
| PTBC150 | 150 | 50 |
| PTBC160 | 160 | 50 |
| PTBC170 | 170 | 50 |
| PTBC180 | 180 | 50 |
| PTBC190 | 190 | 50 |
| PTBC200 | 200 | 50 |
| PTBC210 | 210 | 50 |
| PTBC220 | 220 | 50 |
| PTBC230 | 230 | 50 |
| PTBC240 | 240 | 50 |
| PTBC250 | 250 | 50 |
| PTBC260 | 260 | 50 |
| PTBC270 | 270 | 50 |
| PTBC280 | 280 | 25 |
| PTBC290 | 290 | 25 |
| PTBC300 | 300 | 25 |
| PTBC320 | 320 | 25 |
| PTBC340 | 340 | 25 |
| Reference | Max Size (mm) | Chart Height (mm) | No. Per Pack |
|---|---|---|---|
| SM-BASE | 150 Diameter | 20 – 180 | 100 |
| LM-BASE | 230 Diameter | 190 – 300 | 50 |
Description
Product Specifications
Metal bar chairs are available in a complete range of sizes, from 20mm to 400mm, to accommodate various construction needs. They are supplied in bags of 25, 50, or 100, ensuring an adequate quantity for any project. Meshcrete also stocks and supplies metal chair bases, providing a comprehensive solution for all reinforcement positioning requirements.
Quality Assurance
Meshcrete’s range of metal bar chairs comply with AS/NZS 2425:2015 – Bar chairs in reinforced concrete – Product requirements and test methods. This compliance ensures that the products meet the highest standards of quality and reliability. The plastic-tipped steel legs provide added protection against environmental elements, significantly reducing the risk of corrosion and ensuring consistent support for reinforcement bars and mesh.
Applications
Metal bar chairs are versatile and can be used in a wide range of construction applications, including beams, vertical walls, suspended concrete slabs, and slab-on-ground projects. They provide stable and consistent placement of reinforcement bars and mesh, maintaining the structural integrity and design specifications of the concrete. However, it is recommended that plastic-tipped wire bar chairs are not used close to coastlines, specifically within 1km of the coast.
Innovative Solutions
Meshcrete offers metal bar chairs that combine strength and protection. The plastic-tipped design ensures that the steel legs are shielded from corrosive elements, enhancing the longevity of the chairs. These bar chairs do not require any adjustment after the concrete pour, ensuring the consistent placement of reinforcing bars in slabs. The comprehensive range of sizes ensures that specific project needs are met, providing a customised solution for optimal reinforcement placement.
Why Choose Meshcrete?
Meshcrete is committed to providing the fastest turnaround times in the reinforcement steel and accessory supply industry while maintaining the highest quality standards. State-of-the-art machinery and processes, combined with a dedication to customer satisfaction, ensure the delivery of products that meet and exceed Australian standards. By choosing Meshcrete, you are assured of superior service and products that stand the test of time.
